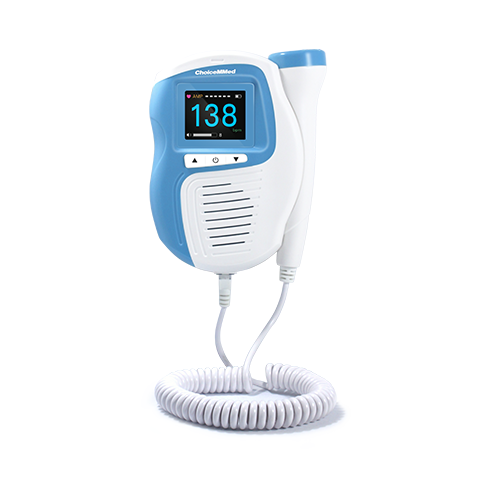

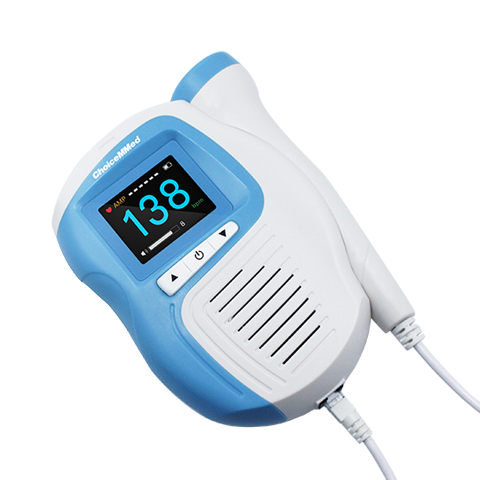

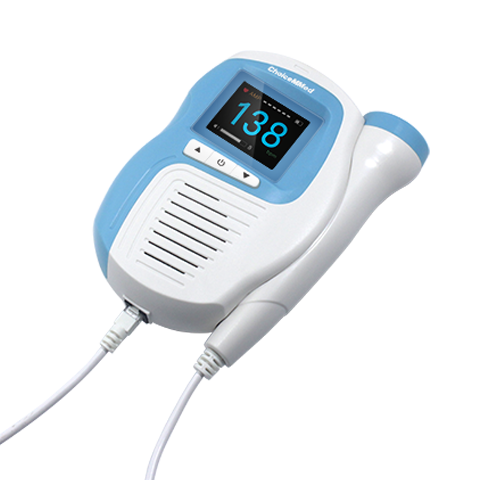

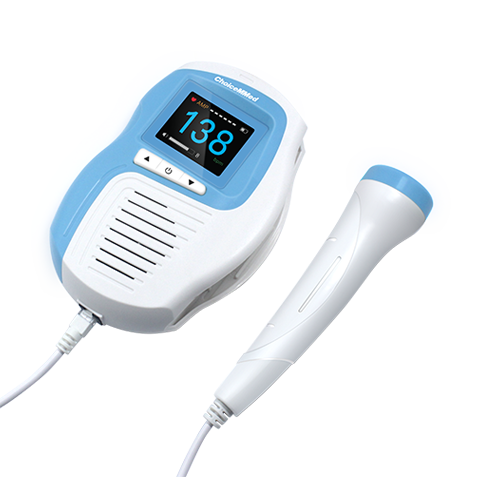

Fetal Doppler
MD800

-Small, portable and easy to operate
-Digital audio processing technology, can hear fetal heart sound more clearly
-TFT screen displays fetal heart, fetal heart rate curve, volume, batery status/ LCD displays FHR, volume and battery status
-TFT screen displays two measruing modes: digit mode, curve mode, could more understand baby's heart rate
-Fetal monitoring medical algorithm meets the hospital clinical requirements
-High sensitive ultrasound probe with 3.0MHz and 2.0MHz (optional)
-Support 3.5mm headphone




Fetal Doppler
MD800





Display Type
Color TFT or LCD
Display Data
FHR (fetal heart rate), fetal movement waveform
Dimension
130mm(L) x 90mm(W) x 38mm(H) (not include probe)
Weight
190g (without battery)
Working Frequency of Ultrasonic
3.0MHz (2.0MHz optional)
Fetal Heart Rate Measuring Range
50bpm ~210bpm
Heart Rate Accuracy
±2bpm
Resolution Ratio
1bpm
Power Supply
2 AA batteries
Operation Temperature
5 ℃ ~ 40 ℃
Operation Humidity
15% ~ 93% RH non-condensing
