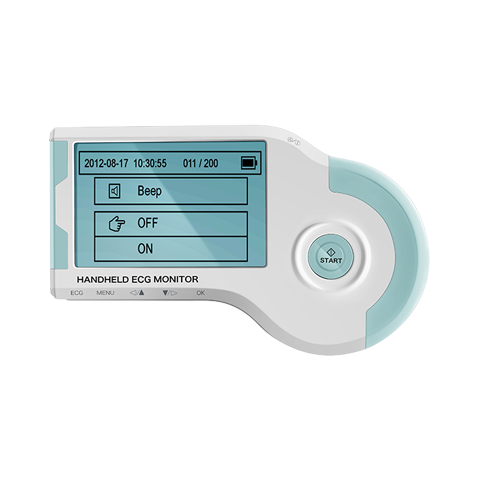

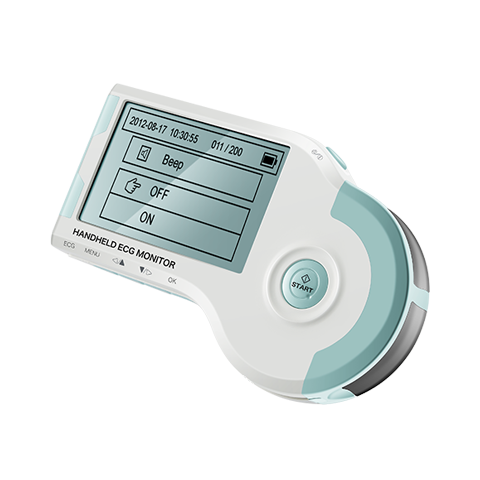

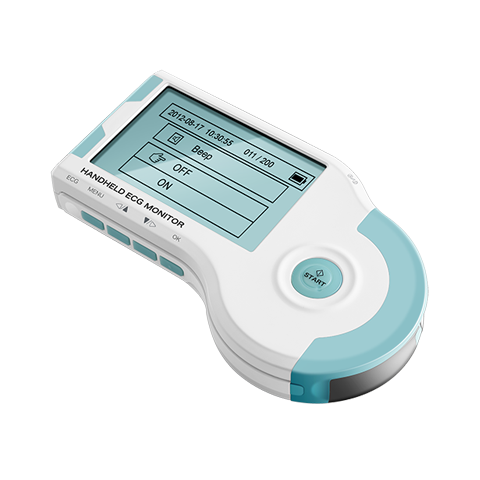

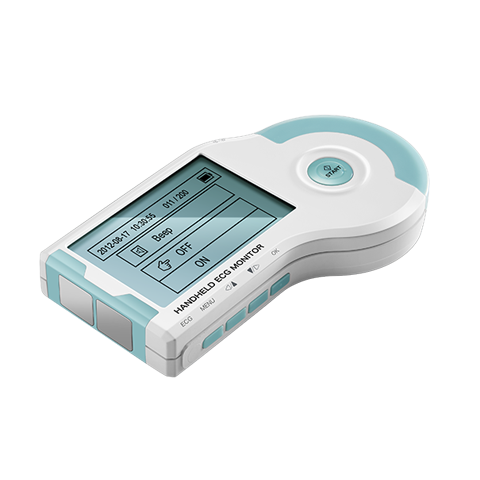

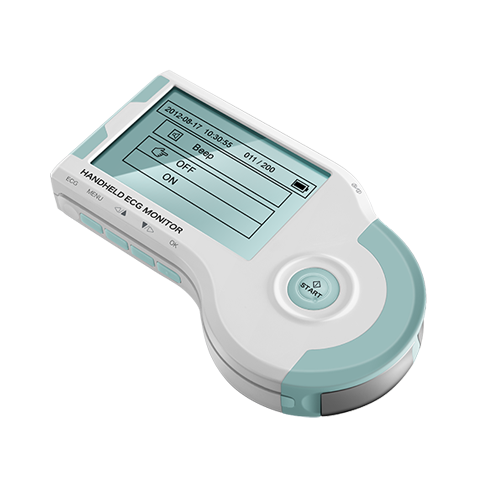

Handheld ECG Monitor
MD100B

-Display of ECG waveform, heart rate, analysis results and battery status on the backlit LCD
-200 ECG records, each with a 30-second ECG waveform and analysis
-Fast measurement in just 30 seconds
-Dual measuring modes
-Results transmission to PC by USB mode
-Auto power-off time selectable
-Self-evaluation based on detection
-Data review freely
-Completely cable and electrode free
-Small, portable and easy to operate
-2 batteries upholding at least 500 times measurement




Handheld ECG Monitor
MD100B





Display Screen
160*240 dot-matrix single color, LCD backlight
Dimension
137*82*22mm
Weight
120g (without 2 AAA batteries)
Data Transmission
USB data cable
Accuracy of Heart Rate
30-100bpm: ≤±2bpm, 101-240bpm: ≤±4bpm or 2% (the smaller)
